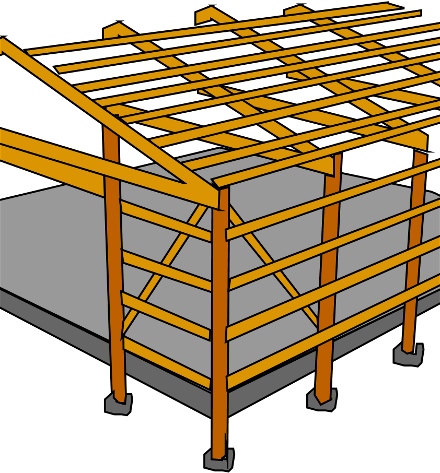

Post
Frame |
This is the framing method used for most Pole
Barns.
Column posts can be 6x6 pine or 4x4 pine or
Steel or
3 ply 2x6 posts glued, laminated,
finger jointed and face planed on 4 sides.
|
|
|
|
|
|
|

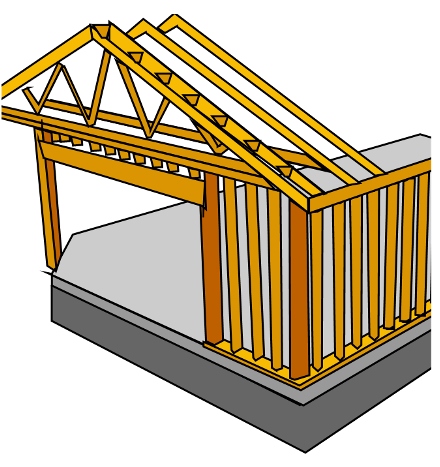

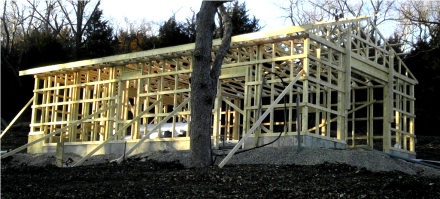

Conventional Stud Wall
Framing |
Conventional stud framing can be used for
residential and/or business occupied space.
Interior walls can be finished off with
plasterboard / sheetrock panels, as can the
ceiling due to the 2 foot on center roof truss
spacing.
Note that this method requires a continuous
concrete footing with a concrete floor slab.
Siding materials are placed over OSB and wrap.
Walls can be insulated for heat/cool
containment. |
|
|
|
|
|
|
|
| |
|
Roof Trusses |
| Roof trusses are a
basic component for your structure. Choice is
based on your load and design requirement. The
attic truss gives you optional useable space for
an attic / loft. |
|
 |
 |
|

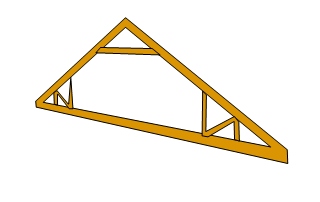

Attic Truss |

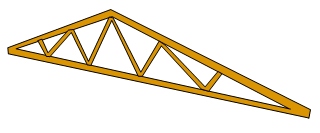

Gable Truss |
 |
 |
|

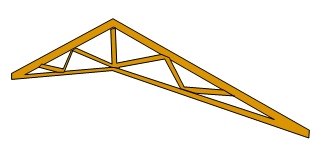

Scissor Truss |

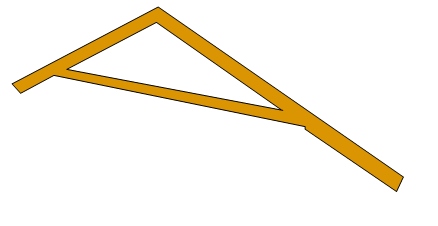

Rafter |
|
|
|
Wall Framing Methods |
| Choice of wall framing
is based on your requirements for interior wall
finishes and insulation. |
 |
 |
|

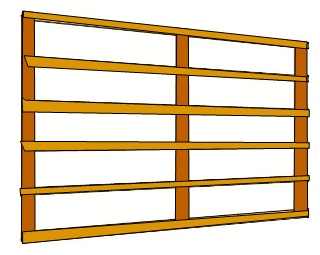

Flush Mounted Wall Studs |

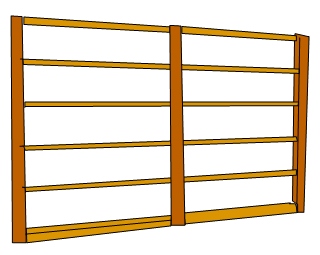

Inset Wall Studs |
 |
 |
|

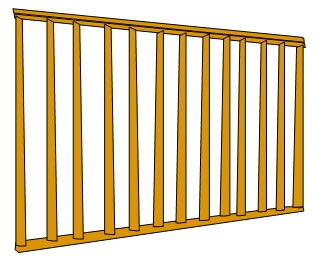

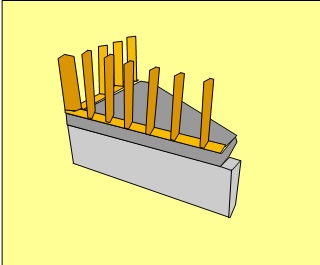

Structural Stud Wall |

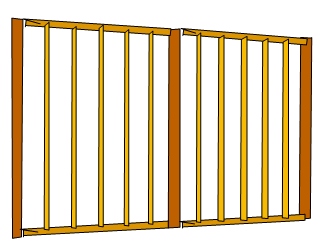

In Fill Stud Walls |
|
|
|
|
Footing Methods |
|
Footings
depend on local conditions. They must be on
undisturbed soil, with the pad resting below the
frost line. Consideration must also be given
slope of the building site. |
|
 |
 |
|

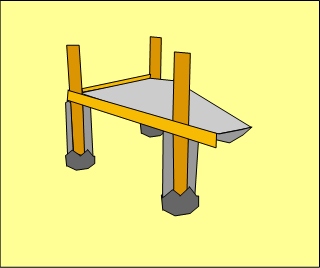

Columns In-Ground
|

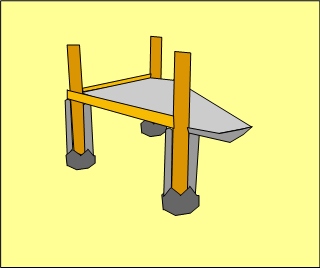

Perma Columns
|
 |
 |
|

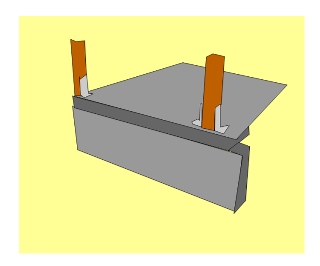

Bracketed Columns on
Continuous Concrete Footing
|
Stud Wall Sill Plate on
Continuous Concrete Footing
|
|
| |
|
|
| |
